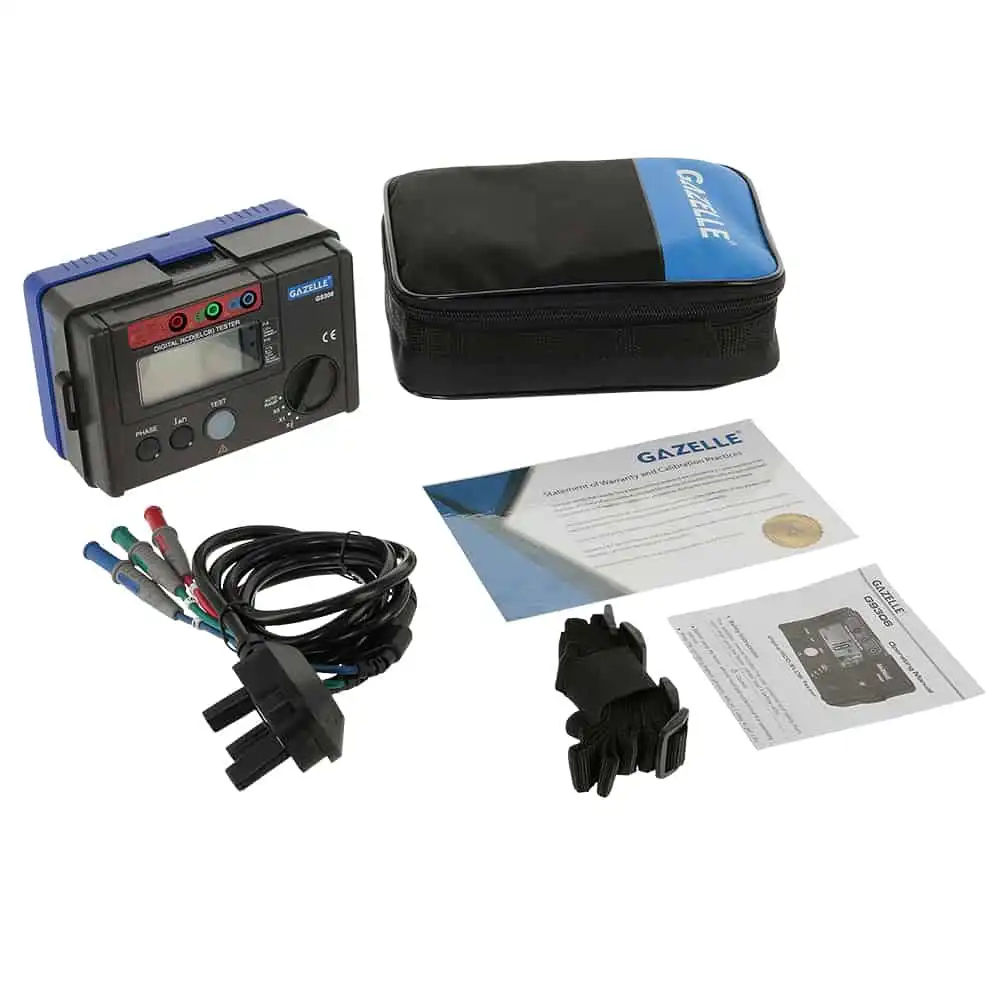

G9306 Rcd-Elcb Tester
G9306 Rcd-Elcb Tester - Image 2
G9306 Rcd-Elcb Tester - Image 3

G9306 Rcd-Elcb Tester

Features

  • Rcd-Elcb Range: 300-1000ms
  • Range Select: x1/2,x2,x5,AUTO RAMP
  • AC Voltage: 195-253V
  • Warranty: 1 year manufacturer’s warranty
ENQUIRE NOW
Categories:

Description

Features

  • RCD-ELCB Testing: Measures RCD-ELCB range from 300ms to 1000ms with high precision.
  • Range Selection: Multiple range options—x1/2, x2, x5, and AUTO RAMP—for versatile testing.
  • Phase Angle Control: Phase angle selection (0° and 180°) to detect the fastest trigger time.
  • AUTO RAMP Mode: Real-time display of trip current and time during AUTO RAMP measurement.
  • Display: 1000-count LCD display for clear and detailed measurement indicators.
  • Safety Indicators: Lead sequence check with 3 LED indication lights for enhanced safety.
  • Protection Features: Fuse protection, over-range indication, and double insulation for reliable operation.
  • Testing Efficiency: Data hold and lock measurement features for efficient testing.
  • Design: Compact and durable design for field use.

Applications

  • Electrical Maintenance: Ideal for testing RCD-ELCB functionality in industrial and commercial electrical systems.
  • Power Distribution: Suitable for verifying safety and compliance in power distribution networks.
  • Industrial Equipment: Essential for ensuring the safety of machinery and equipment with RCD-ELCB systems.
  • Construction: Used for testing electrical installations in large-scale building projects and infrastructure.
  • Telecommunications: Applicable for verifying electrical safety in telecom towers and data centers.

TECHNICAL SPECIFICATIONS

Rcd-Elcb Range 300-1000ms
Range Select x1/2,x2,x5,AUTO RAMP
AC Voltage 195-253V
Frequency 50Hz

SERVICES

Gazelle Tool Service

  • Authorized Service Centers — All warranty claims and repairs are handled by certified centers to ensure quality and compliance.
  • Genuine Parts Only — Every repair uses original parts to maintain performance, safety, and tool longevity.
  • Reliable & Transparent Support — Expert technicians provide trusted repairs with clear communication at every step.

PERFORMANCE YOU TRUST

Trusted by Professionals

  • Industry-Proven Tools — Chosen by leading contractors, technicians, and service teams across the region.
  • Certified Quality & Compliance — Products and services meet global standards (CE, ANSI, EN, OSHA) for safety and reliability.
  • Authorized Service Network — Backed by trained technicians and genuine spare parts for consistent performance.
  • Decades of Expertise — A trusted partner for professionals in construction, utilities, and industrial maintenance.
  • Reliable After-Sales Support — Fast response, transparent repairs, and lasting confidence in every tool.

DATASHEET

PACKAGING INFO

Width 16 cm
Length 26 cm
Height 8 cm
Weight 2 Kg
