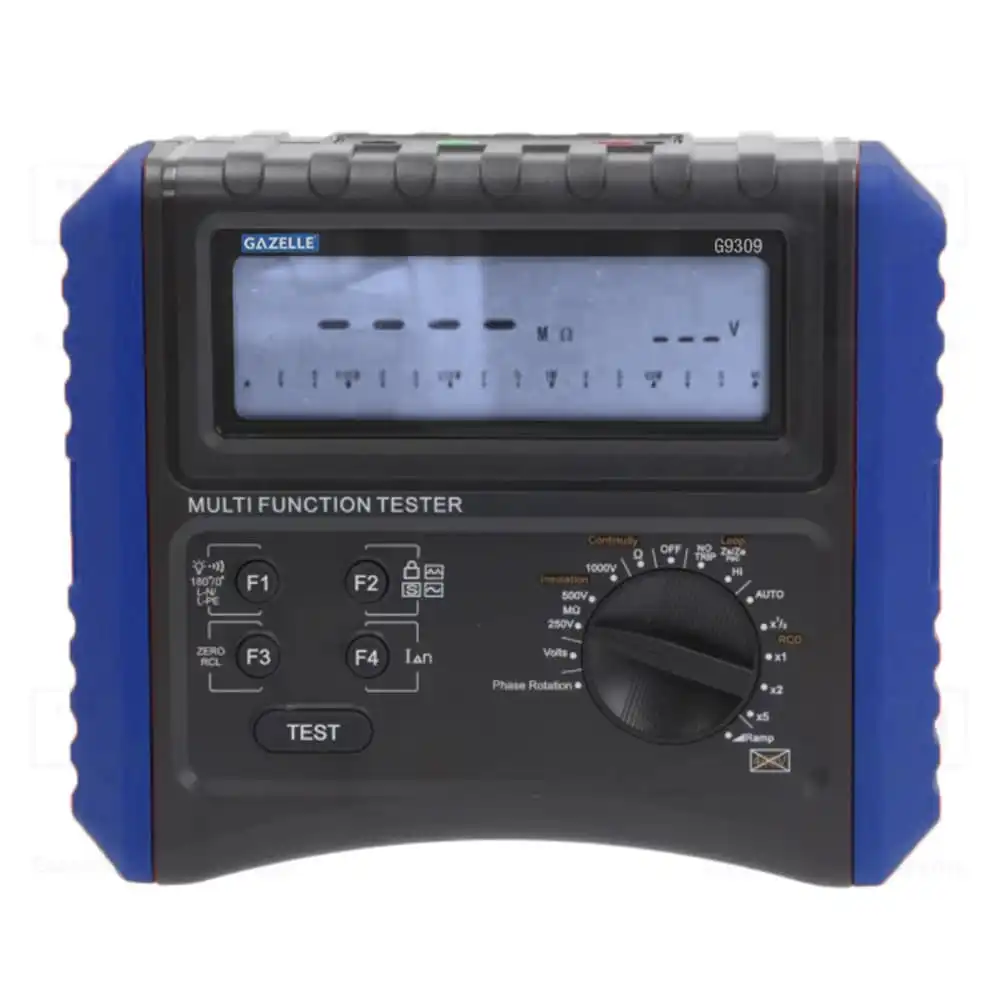

G9309 Multifunction Installation Tester
G9309 Multifunction Installation Tester - Image 2
G9309 Multifunction Installation Tester - Image 3

G9309 Multifunction Installation Tester

Features

  • RCD Test Current: 10, 30, 100, 300, 500 mA
  • Loop Impedence Test (Current/Time): 20A/20 ms
  • Line Impedence Test (Current/Time): 20A/20 ms
  • Insulation Resistance (250V): 0.05 – 250 MΩ
  • Warranty: 1 year manufacturer’s warranty

Scope of Delivery

  • 1x Installation Tester
  • 8x 1.5V AA Alkaline Batteries
  • 1x Operating Manual
  • 1x Pair of test leads
  • 1x Carry bag
ENQUIRE NOW
Categories:

Description

Features

  • RCD Testing: Measures RCD test currents (10, 30, 100, 300, 500 mA) with high precision.
  • Impedance Testing: Performs loop and line impedance tests with 20A/20ms current and time settings.
  • Insulation Resistance: Selectable test voltages—250V (0.05–250MΩ), 500V (0.05–500MΩ), and 1000V (0.05–1000MΩ).
  • Continuity Testing: Test scope from 0.01Ω to 200Ω for detailed diagnostics.
  • Voltage & Frequency: Measures AC/DC voltage up to 400V with a frequency range of 20–100Hz.
  • Display: 9999-count LCD display for clear and detailed readings.
  • Safety Rating: CAT III 300V safety rating for reliable operation in industrial environments.
  • Design: Compact design with integrated analog and digital circuits for stable performance.
  • Applications: Ideal for testing, inspection, and maintenance work across various applications.

Applications

  • RCD Testing: Measures RCD test currents (10, 30, 100, 300, 500 mA) with high precision.
  • Impedance Testing: Performs loop and line impedance tests with 20A/20ms current and time settings.
  • Insulation Resistance: Selectable test voltages—250V (0.05–250MΩ), 500V (0.05–500MΩ), and 1000V (0.05–1000MΩ).
  • Continuity Testing: Test scope from 0.01Ω to 200Ω for detailed diagnostics.
  • Voltage & Frequency: Measures AC/DC voltage up to 400V with a frequency range of 20–100Hz.
  • Display: 9999-count LCD display for clear and detailed readings.
  • Safety Rating: CAT III 300V safety rating for reliable operation in industrial environments.
  • Design: Compact design with integrated analog and digital circuits for stable performance.
  • Applications: Ideal for testing, inspection, and maintenance work across various applications.

TECHNICAL SPECIFICATIONS

RCD Test Current 10, 30, 100, 300, 500 mA
Loop Impedence Test (Current/Time) 20A/20 ms
Line Impedence Test (Current/Time) 20A/20 ms
Insulation Resistance (250V) 0.05 – 250 MΩ
Insulation Resistance (500V) 0.05 – 500 MΩ
Insulation Resistance (1000V) 0.05 – 1000 MΩ
Frequency Range 20 – 100 Hz
Continuity Test Scope 0.01 – 200 Ω
Voltage Range (AC/DC) 0 – 400V
Display Type LCD
Display Count 9999
Safety Rating CAT III 300V
Dimensions (LxWxD) 210 x 175 x 90mm
