G9409 Laser Tachometer

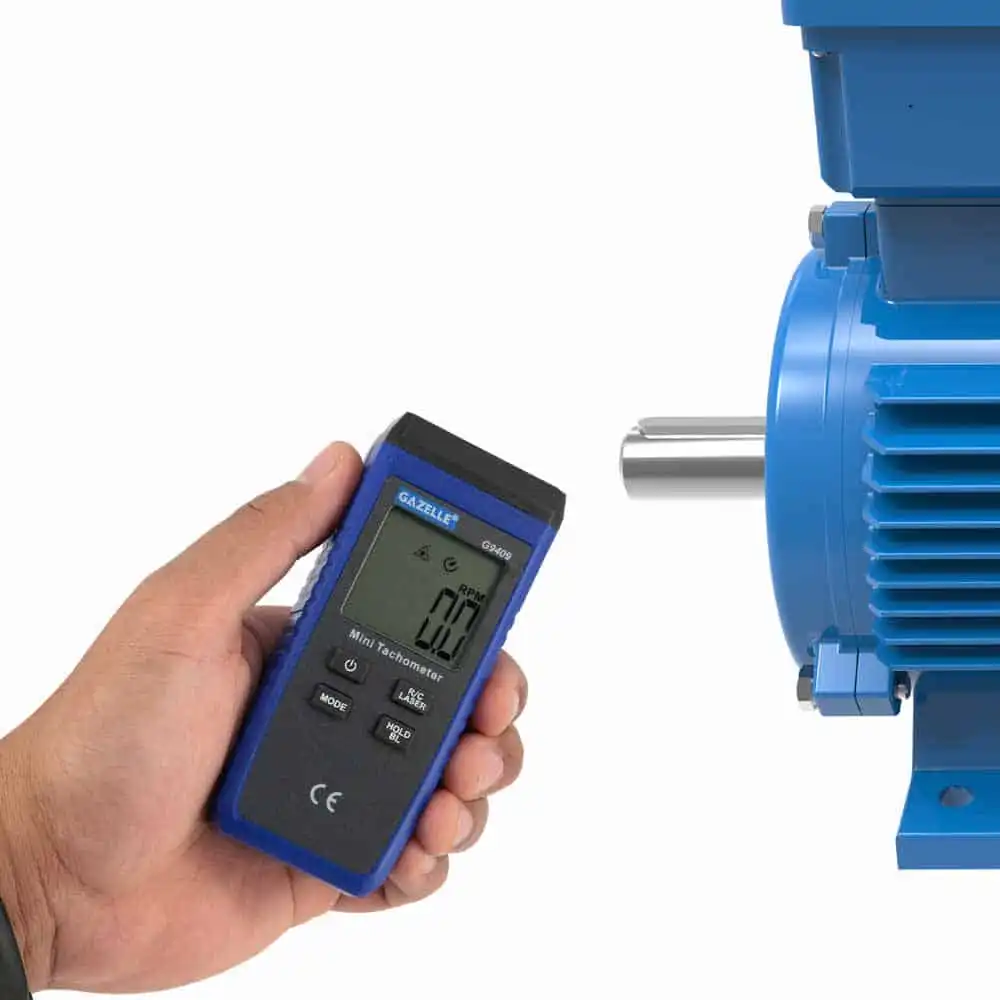

G9409 Laser Tachometer - Image 2
G9409 Laser Tachometer - Image 3

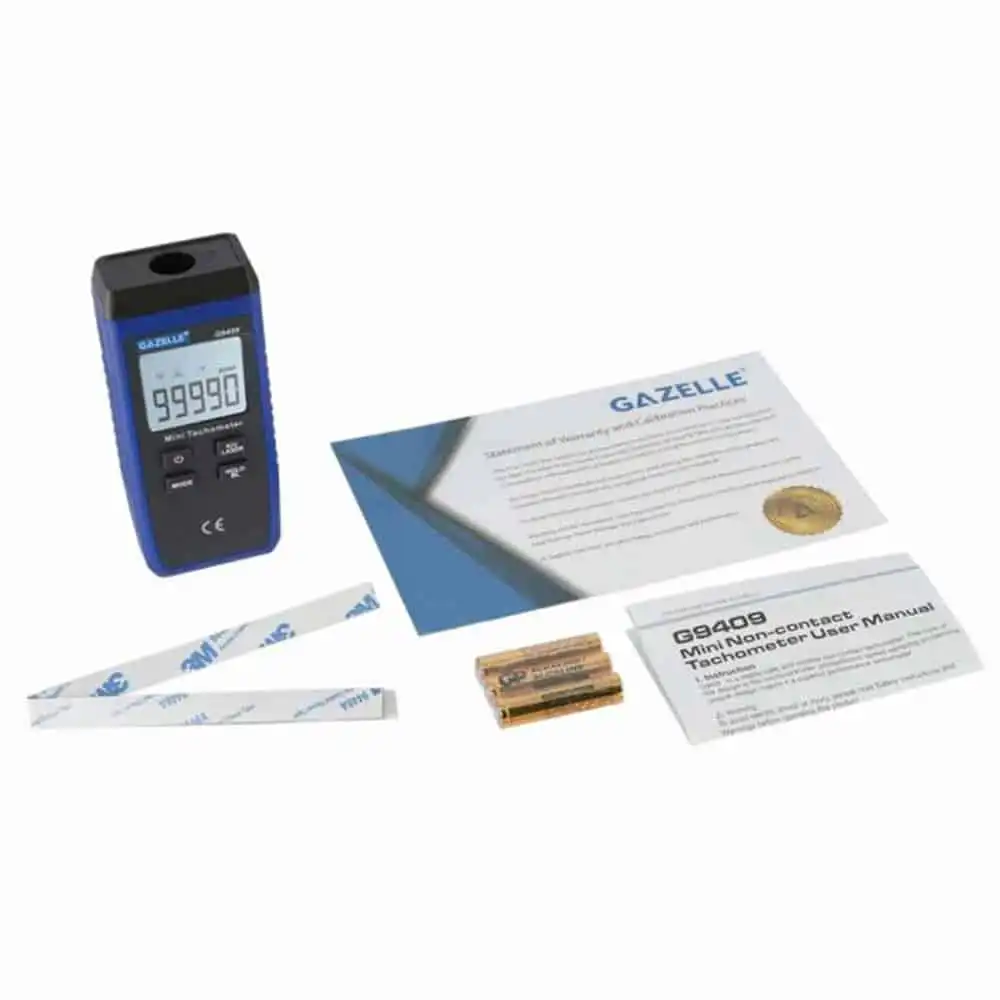

G9409 Laser Tachometer - Image 4

G9409 Laser Tachometer

Features

  • Speed Range: 10-99,999rpm
  • Measurement Count: 0-99999
  • Target Distance: 50-200mm
  • Working temperature and humidity: 0 ° C to 50 ° C (no more than 80%RH)
  • Warranty: 1 year manufacturer’s warranty

Scope of Delivery

  • Operating Manual
  • Reflective Strips
  • 1.5V AAA – 3pcs
ENQUIRE NOW
Categories:

Description

Features

  • Wide Speed Range: Measures rotational speeds from 10 to 99,999 RPM for versatile applications.
  • Non-Contact Measurement: Safely measures rotational objects without physical contact.
  • High Accuracy: Displays results in RPM or revolution count with a measurement count up to 99,999.
  • Auto Range Functionality: Automatically adjusts to the optimal range for precise readings.
  • Max/Min and Data Hold Modes: Captures maximum, minimum, and holds data for detailed analysis.
  • Laser-On Indication: Provides a clear signal trigger and laser-on indication for user convenience.
  • Overload Display: Alerts users with an “OL” display when the range is exceeded.
  • Durable Design: Withstands drops up to 1 meter, ensuring reliability in tough environments.
  • Energy-Efficient: Features low battery indication and auto power-off to conserve energy.
  • Compact and Lightweight: Ergonomic design with a weight of just 0.2 kg for easy handling.

Applications

  • Manufacturing & Production: Monitors rotational speeds of motors and machinery for quality control.
  • Automotive Industry: Measures engine RPM and rotational components in vehicles.
  • Aerospace & Aviation: Tests rotational speeds of turbines and other critical components.
  • HVAC Systems: Evaluates fan and blower speeds for optimal performance.
  • Industrial Maintenance: Diagnoses and monitors machinery to prevent breakdowns.
  • Research & Development: Supports testing and analysis of rotational systems in laboratories.
  • Energy Sector: Monitors rotational speeds in wind turbines and power generation equipment.
  • Construction Equipment: Ensures proper functioning of rotating tools and machinery.

TECHNICAL SPECIFICATIONS

Speed Range 10-99,999rpm
Measurement Count 0-99999
Target Distance 50-200mm
Working temperature and humidity 0 ° C to 50 ° C (no more than 80%RH)
Drop Test 1m
Operating Temperature 0 to 50°C
Operating Humidity 0-80% RH
Storage Temperature -20 to 60°C
Storage Humidity 0-80% RH

SERVICES

Gazelle Tool Service

  • Authorized Service Centers — All warranty claims and repairs are handled by certified centers to ensure quality and compliance.
  • Genuine Parts Only — Every repair uses original parts to maintain performance, safety, and tool longevity.
  • Reliable & Transparent Support — Expert technicians provide trusted repairs with clear communication at every step.

PERFORMANCE YOU TRUST

Trusted by Professionals

  • Industry-Proven Tools — Chosen by leading contractors, technicians, and service teams across the region.
  • Certified Quality & Compliance — Products and services meet global standards (CE, ANSI, EN, OSHA) for safety and reliability.
  • Authorized Service Network — Backed by trained technicians and genuine spare parts for consistent performance.
  • Decades of Expertise — A trusted partner for professionals in construction, utilities, and industrial maintenance.
  • Reliable After-Sales Support — Fast response, transparent repairs, and lasting confidence in every tool.

DATASHEET

PACKAGING INFO

Width 7 cm
Length 18 cm
Height 4 cm
Weight 0.2 Kg
