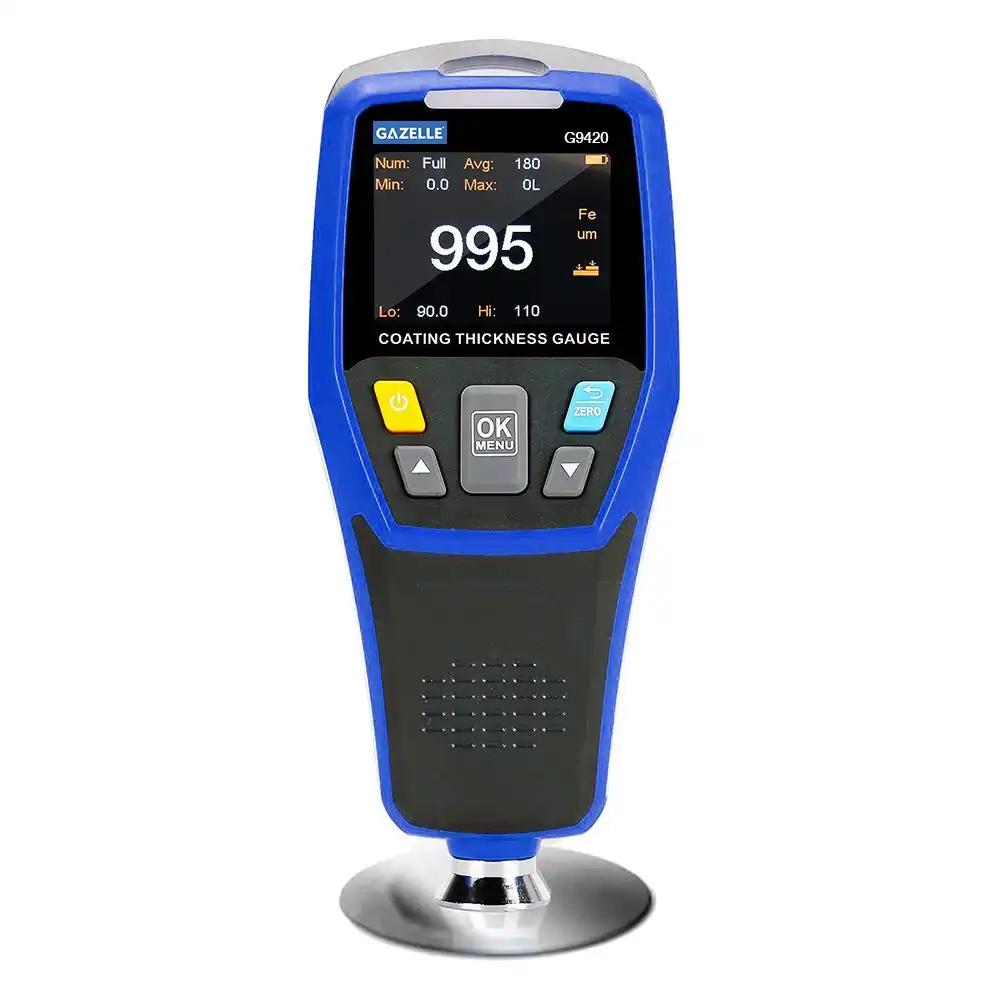

G9420 Coating Thickness Gauge
G9420 Coating Thickness Gauge - Image 2

G9420 Coating Thickness Gauge

Features

  • Measuring range: 0~1250µm
  • Accuracy: ±(3%H+1)µm
  • Resolution: 0.1µm (099.9µm); 1µm (1001250µm)
  • Measurement method: Single/Continuous
  • Measurement mode: Max/Min/Avg
  • Warranty: 1 year manufacturer’s warranty
ENQUIRE NOW
Categories:

Description

Features

  • Wide Measurement Range: Measures coating thickness from 0 to 1250µm with high accuracy (±(3%H+1)µm).
  • Dual Metal Compatibility: Suitable for both ferrous and non-ferrous materials.
  • High-Resolution Display: 2.0-inch TFT LCD with 320 x 240 pixels for clear and detailed readings.
  • Quick Test Mode: Allows users to set thickness ranges for rapid assessments.
  • Multi-Mode Measurement: Offers single, continuous, and Max/Min/Avg measurement modes for versatile applications.
  • Visual and Audio Alerts: Features 3-color LED and audio alarms to indicate preset range compliance.
  • Auto Rotating Screen: Ensures easy readability from any angle with brightness control.
  • Data Storage: Stores up to 500 groups of measurement data for analysis and reporting.
  • PC Connectivity: Includes USB communication and PC analysis software for advanced data management.
  • Energy-Efficient Design: Auto power-off and low battery indication to conserve energy.
  • Portable and Lightweight: Compact design weighing only 175g for easy handling.

Applications

  • Automotive Industry: Measures paint and coating thickness on vehicles for quality control and maintenance.
  • Manufacturing & Production: Ensures consistent coating thickness in industrial production lines.
  • Aerospace & Aviation: Verifies protective coatings on aircraft components for safety and durability.
  • Marine Industry: Assesses anti-corrosion coatings on ships and marine equipment.
  • Construction & Infrastructure: Evaluates protective coatings on steel structures and pipelines.
  • Quality Assurance: Supports inspection teams in maintaining coating standards across industries.
  • Research & Development: Assists in material testing and coating research in laboratories.
  • Energy Sector: Monitors coatings on equipment in power plants and renewable energy systems.

TECHNICAL SPECIFICATIONS

Measuring range 0~1250µm
Accuracy ±(3%H+1)µm
Resolution 0.1µm (0~99.9µm); 1µm (100~1250µm)
Measurement method Single/Continuous
Measurement mode Max/Min/Avg
Metal type Ferrous/ non-ferrous
Display type 2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control Yes
Auto rotatable screen Yes
Unit conversion Yes
Audio alarm Yes
LED alarm Yes
PC analysis software Yes
USB communication Yes
Quick test mode Yes
Data storage 500 groups
Auto power off Yes
Low battery indication Yes
Power 1.5V AA battery x 2
Display 48mm x 36mm
Product net weight 175g
Product size 153.5mm x 64.5mm x 41mm
