G9636 Hydraulic Crimping Head, 16-630mm² with Dies

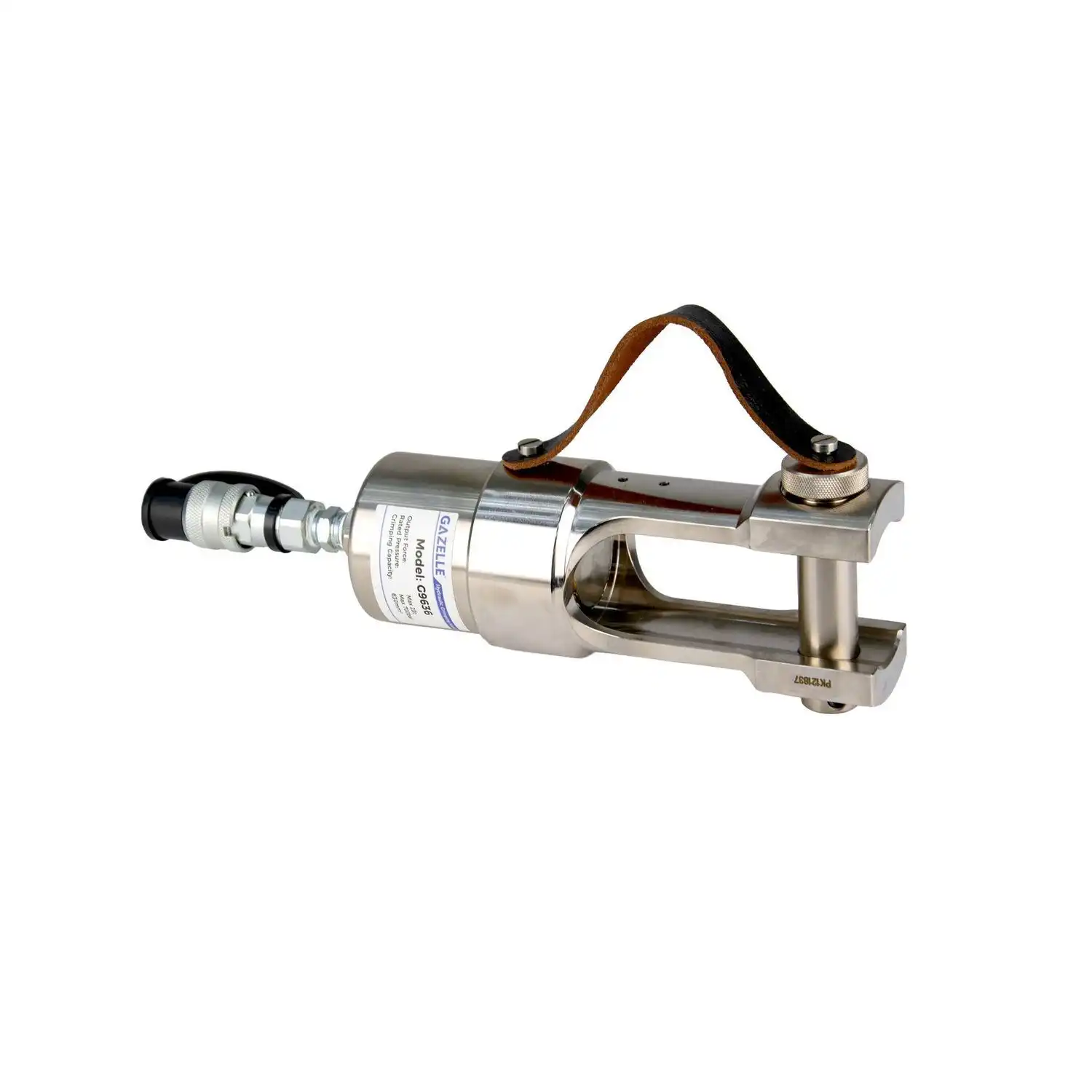

G9636 Hydraulic Crimping Head, 16-630mm² with Dies - Image 2

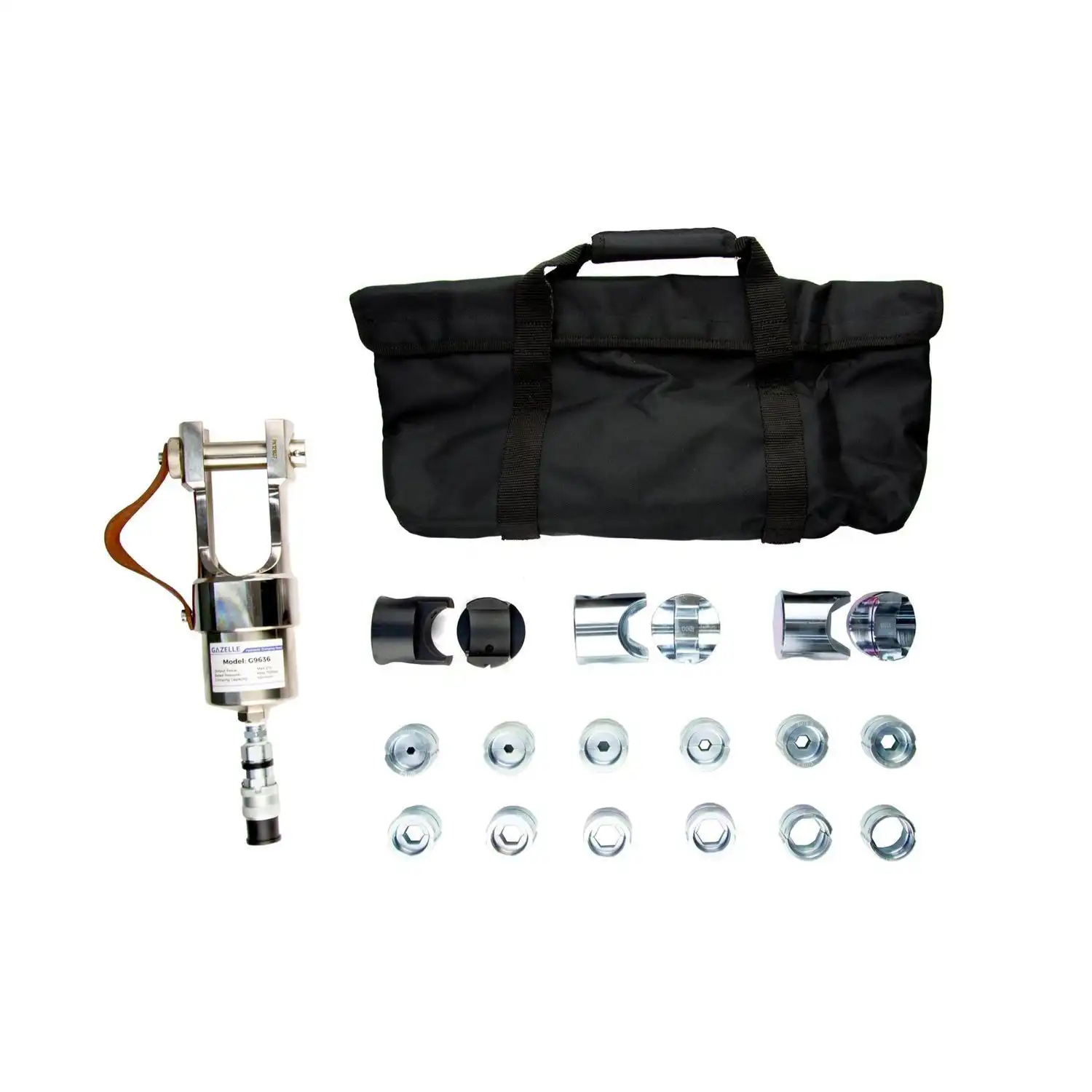

G9636 Hydraulic Crimping Head, 16-630mm² with Dies - Image 3

G9636 Hydraulic Crimping Head, 16-630mm² with Dies

Features

  • Crimping Force: 25T
  • Stroke: 20 mm
  • Rated Pressure: 700 bar
  • Crimping Capacity: 630 mm²
  • Warranty: 1 year manufacturer’s warranty

Scope of Delivery

  • Crimping dies 16-630mm2
  • Canvas carrying bag
ENQUIRE NOW
Categories:

Description

Features

  • U-Type Crimping Head: Sturdy and durable design for reliable performance in demanding environments.
  • Pin-Type Crimping Head: Allows easy access to fittings, enhancing operational efficiency.
  • Quick Coupler System: Enables fast and hassle-free disassembly for seamless tool changes.
  • Powered by Single-Acting Hydraulic Pump: Ensures consistent and powerful crimping operations.
  • Lightweight Design: Weighs only 6.8 kg, making it suitable for overhead line work and other challenging applications.
  • High Crimping Force: Delivers 25 tons of power for heavy-duty crimping tasks.
  • Wide Crimping Capacity: Supports cables up to 630 mm², catering to diverse industrial needs.
  • Canvas Carrying Bag: Provides secure storage and easy transport of the tool and accessories.

Applications

  • Electrical Power Distribution: Ideal for crimping cables in substations and power grids.
  • Telecommunications: Suitable for securing connections in telecom infrastructure.
  • Industrial Manufacturing: Perfect for heavy-duty wiring in machinery and equipment.
  • Construction: Used in electrical installations for commercial and industrial buildings.
  • Energy Sector: Applicable for renewable energy projects like solar farms and wind turbines.
  • Railway Systems: Ensures secure connections in railway signaling and power systems.
  • Shipbuilding: Reliable for marine electrical systems and heavy-duty cable installations.
  • Utility Maintenance: Essential for on-site cable repairs and installations in utility services.

TECHNICAL SPECIFICATIONS

Crimping Force 25T
Stroke 20 mm
Rated Pressure 700 bar
Crimping Capacity 630 mm²
Weight 6.8 kg
Packing Canvas Bag

SERVICES

Gazelle Tool Service

  • Authorized Service Centers — All warranty claims and repairs are handled by certified centers to ensure quality and compliance.
  • Genuine Parts Only — Every repair uses original parts to maintain performance, safety, and tool longevity.
  • Reliable & Transparent Support — Expert technicians provide trusted repairs with clear communication at every step.

PERFORMANCE YOU TRUST

Trusted by Professionals

  • Industry-Proven Tools — Chosen by leading contractors, technicians, and service teams across the region.
  • Certified Quality & Compliance — Products and services meet global standards (CE, ANSI, EN, OSHA) for safety and reliability.
  • Authorized Service Network — Backed by trained technicians and genuine spare parts for consistent performance.
  • Decades of Expertise — A trusted partner for professionals in construction, utilities, and industrial maintenance.
  • Reliable After-Sales Support — Fast response, transparent repairs, and lasting confidence in every tool.

DATASHEET

PACKAGING INFO

Width 14 cm
Length 40 cm
Height 18 cm
Weight 14.1 Kg
