G9685 Manual Hydraulic Punching Tool Set, 6-Pieces

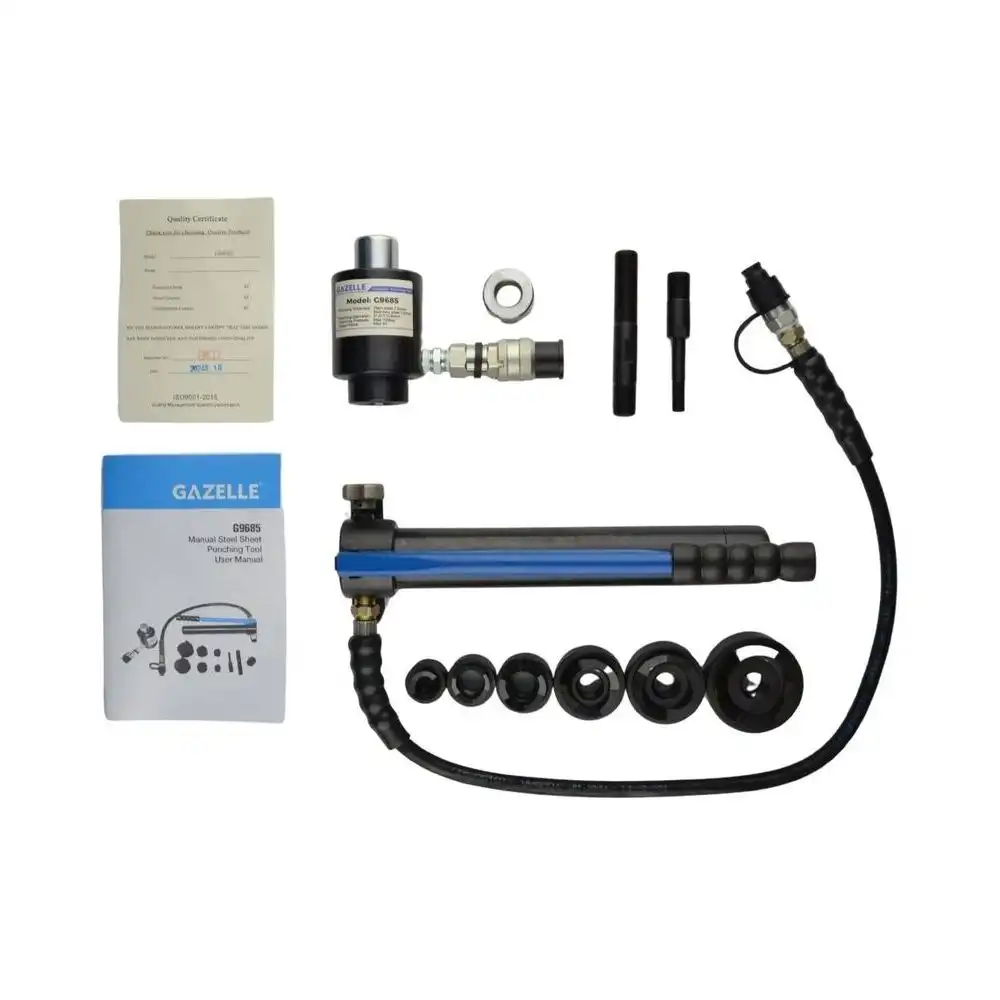

G9685 Manual Hydraulic Punching Tool Set, 6-Pieces - Image 2

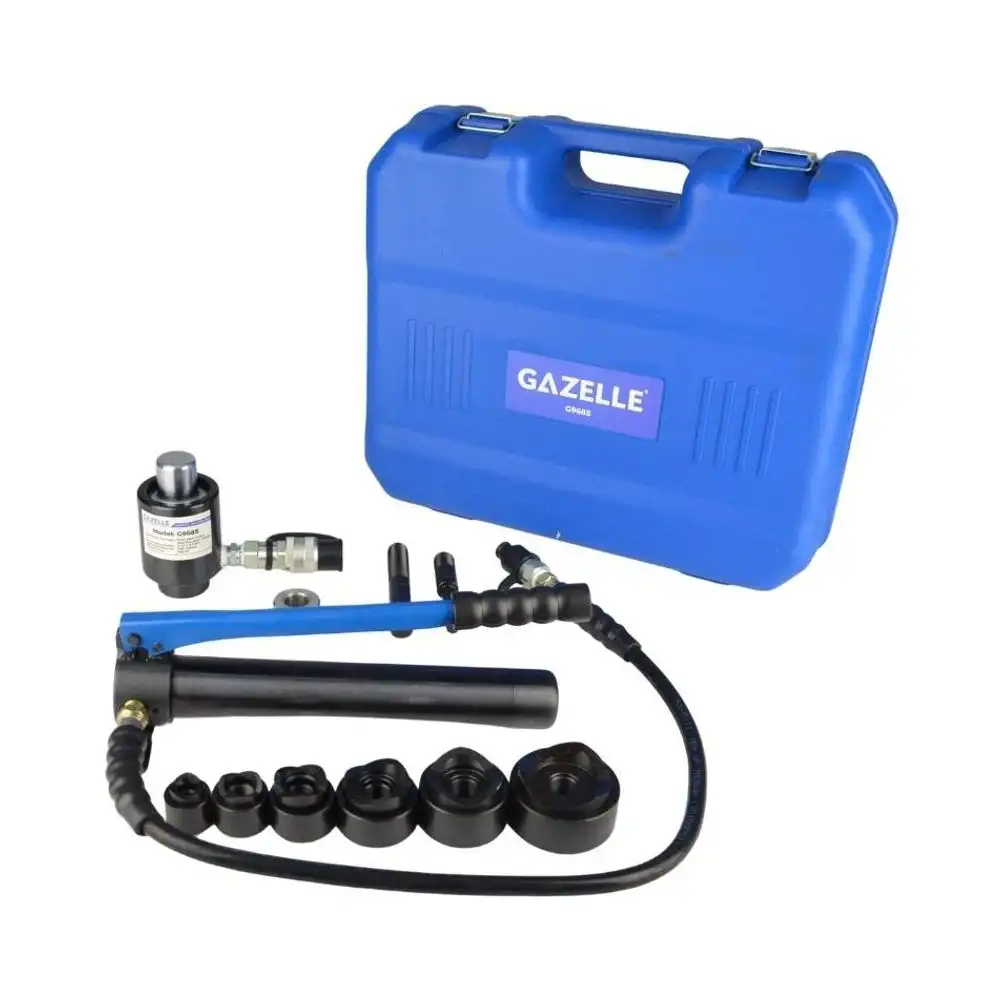

G9685 Manual Hydraulic Punching Tool Set, 6-Pieces - Image 3

G9685 Manual Hydraulic Punching Tool Set, 6-Pieces

Features

  • Cutting Force: 9T
  • Standard Dies: 1/2″, 3/4″, 1″, 11/4″, 11/2″, 2″, 6 sets
  • Rated Pressure: 700bar
  • Punching Capacity: Plain Sheet Steel 3.2mm, Stainless Sheet Steel 1.6mm
  • Warranty: 1 year manufacturer’s warranty
ENQUIRE NOW
Categories:

Description

Features

  • High Punching Force: Delivers 9 tons of output force, ensuring efficient and precise punching for industrial applications.
  • Versatile Die Set: Includes 6 standard dies (1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″) for a wide range of punching needs.
  • Robust Punching Capacity: Handles plain sheet steel up to 3.2 mm and stainless steel sheets up to 1.6 mm.
  • Customizable Options: In addition to standard round holes, square holes can be customized for specific requirements.
  • Smooth and Clean Punching: Ensures no flash or burr, providing a professional finish.
  • Durable Construction: Built to withstand rigorous industrial use, ensuring long-lasting performance.
  • 1 Year manufacturer’s warranty

Applications

  • Electrical Panel Fabrication: Ideal for creating precise holes in steel and stainless steel panels for electrical components.
  • Industrial Manufacturing: Suitable for heavy-duty punching tasks in machinery and equipment production.
  • Construction: Used for punching holes in structural steel components for commercial and industrial buildings.
  • Energy Sector: Applicable for renewable energy projects like solar panel installations and wind turbines.
  • Telecommunications: Ensures accurate punching for cable management and telecom infrastructure setups.
  • Shipbuilding: Reliable for marine-grade steel punching in ship construction and maintenance.
  • Utility Maintenance: Essential for on-site punching tasks in utility services and infrastructure projects.

TECHNICAL SPECIFICATIONS

Output Force 9T
Standard Dies 1/2″, 3/4″, 1″, 11/4″, 11/2″, 2″, 6 sets
Rated Pressure 700bar
Punching Capacity Plain Sheet Steel 3.2mm, Stainless Sheet Steel 1.6mm

SERVICES

Gazelle Tool Service

  • Authorized Service Centers — All warranty claims and repairs are handled by certified centers to ensure quality and compliance.
  • Genuine Parts Only — Every repair uses original parts to maintain performance, safety, and tool longevity.
  • Reliable & Transparent Support — Expert technicians provide trusted repairs with clear communication at every step.

PERFORMANCE YOU TRUST

Trusted by Professionals

  • Industry-Proven Tools — Chosen by leading contractors, technicians, and service teams across the region.
  • Certified Quality & Compliance — Products and services meet global standards (CE, ANSI, EN, OSHA) for safety and reliability.
  • Authorized Service Network — Backed by trained technicians and genuine spare parts for consistent performance.
  • Decades of Expertise — A trusted partner for professionals in construction, utilities, and industrial maintenance.
  • Reliable After-Sales Support — Fast response, transparent repairs, and lasting confidence in every tool.

DATASHEET

PACKAGING INFO

Width 38 cm
Length 43 cm
Height 17 cm
Weight 11.5 Kg
