G9686 31 Ton Busbar Punching Tool, Blue, 700Bar

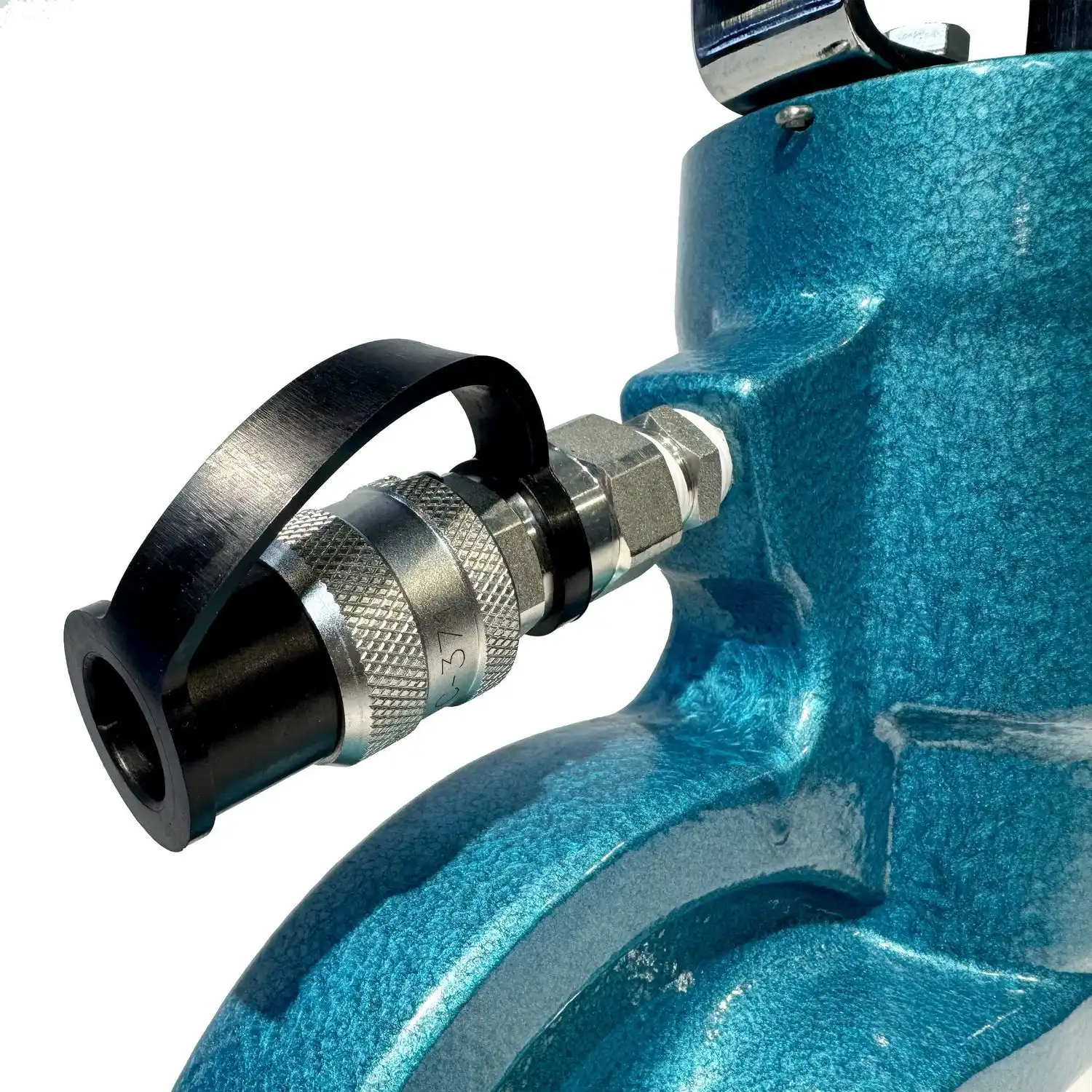

G9686 31 Ton Busbar Punching Tool, Blue, 700Bar - Image 2

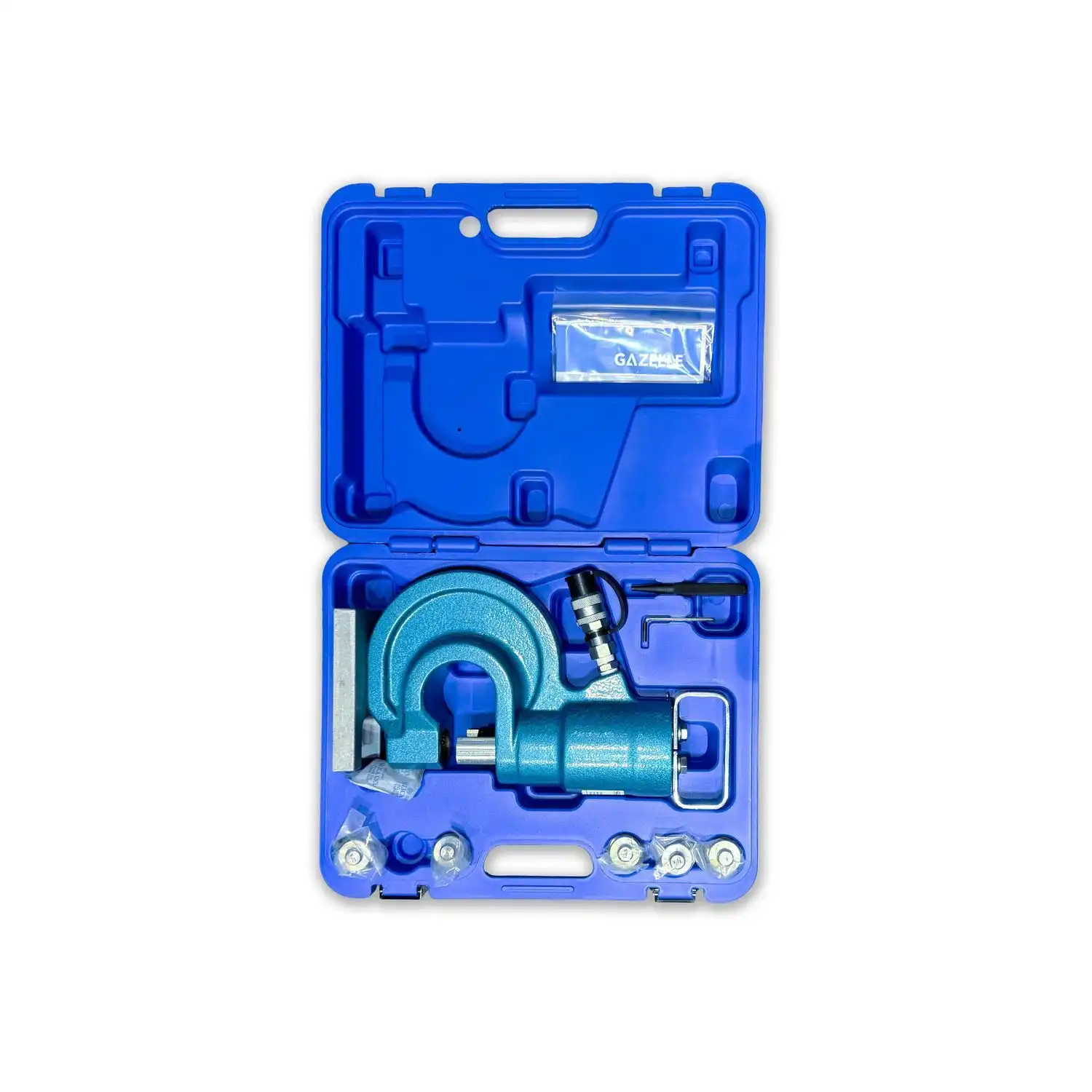

G9686 31 Ton Busbar Punching Tool, Blue, 700Bar - Image 3

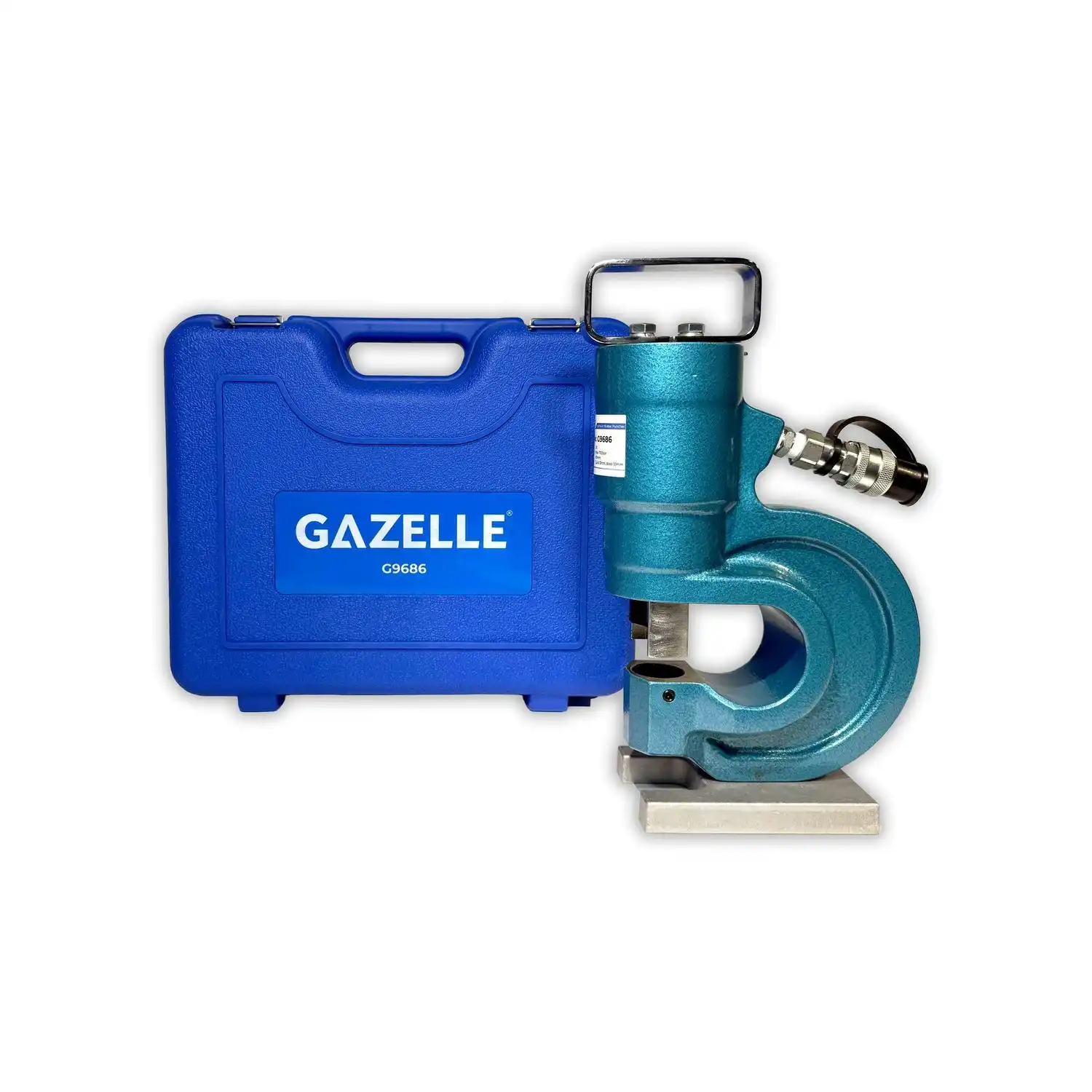

G9686 31 Ton Busbar Punching Tool, Blue, 700Bar - Image 4

G9686 31 Ton Busbar Punching Tool, Blue, 700Bar

Features

  • Punching Force: 31T
  • Max Thickness: Cu/Al – 13mm, Plain – Steel 10mm
  • Rated Pressure: 700bar
  • Warranty: 1 year manufacturer’s warranty

Scope of Delivery

  • Punching Head
  • Punching Dies – φ8, 10.5, 13.5, 17.5, 20.5mm
ENQUIRE NOW
Categories:

Description

Features

  • High Punching Force: Delivers 31 tons of punching force, ensuring precision and efficiency in heavy-duty applications.
  • Versatile Material Compatibility: Handles copper/aluminum busbars up to 13mm thick and plain steel up to 10mm thick.
  • Hydraulic Compatibility: Designed to work seamlessly with G9645, G9645-II, and G9635 hydraulic pumps.
  • Durable Construction: Built to withstand demanding industrial environments, ensuring long-lasting performance.
  • Compact and Portable Design: Weighs 13.5kg with dimensions of 25x10x37cm, making it easy to transport and use on-site.
  • Comprehensive Accessories: Includes punching dies in multiple sizes (φ8, 10.5, 13.5, 17.5, 20.5mm) for versatile applications.
  • Protective Packaging: Comes in a robust steel case for secure storage and transport.

Applications

  • Electrical Power Distribution: Ideal for creating precise holes in busbars for electrical panels and substations.
  • Industrial Manufacturing: Essential for fabricating and assembling electrical components in manufacturing facilities.
  • Construction: Used in the installation of electrical systems in commercial and industrial buildings.
  • Energy Sector: Supports renewable energy projects like solar farms and wind turbines by preparing busbars for electrical connections.
  • Utility Maintenance: Facilitates on-site repairs and modifications of busbars in utility services.
  • Telecommunications: Ensures accurate punching for busbars used in telecom infrastructure setups.

TECHNICAL SPECIFICATIONS

punching Force 31T
Max Thickness Cu/Al – 13mm, Plain – Steel 10mm
Rated Pressure 700bar
Weight 13.5kg
Dimensions 25x10x37cm
Package Steel Case
