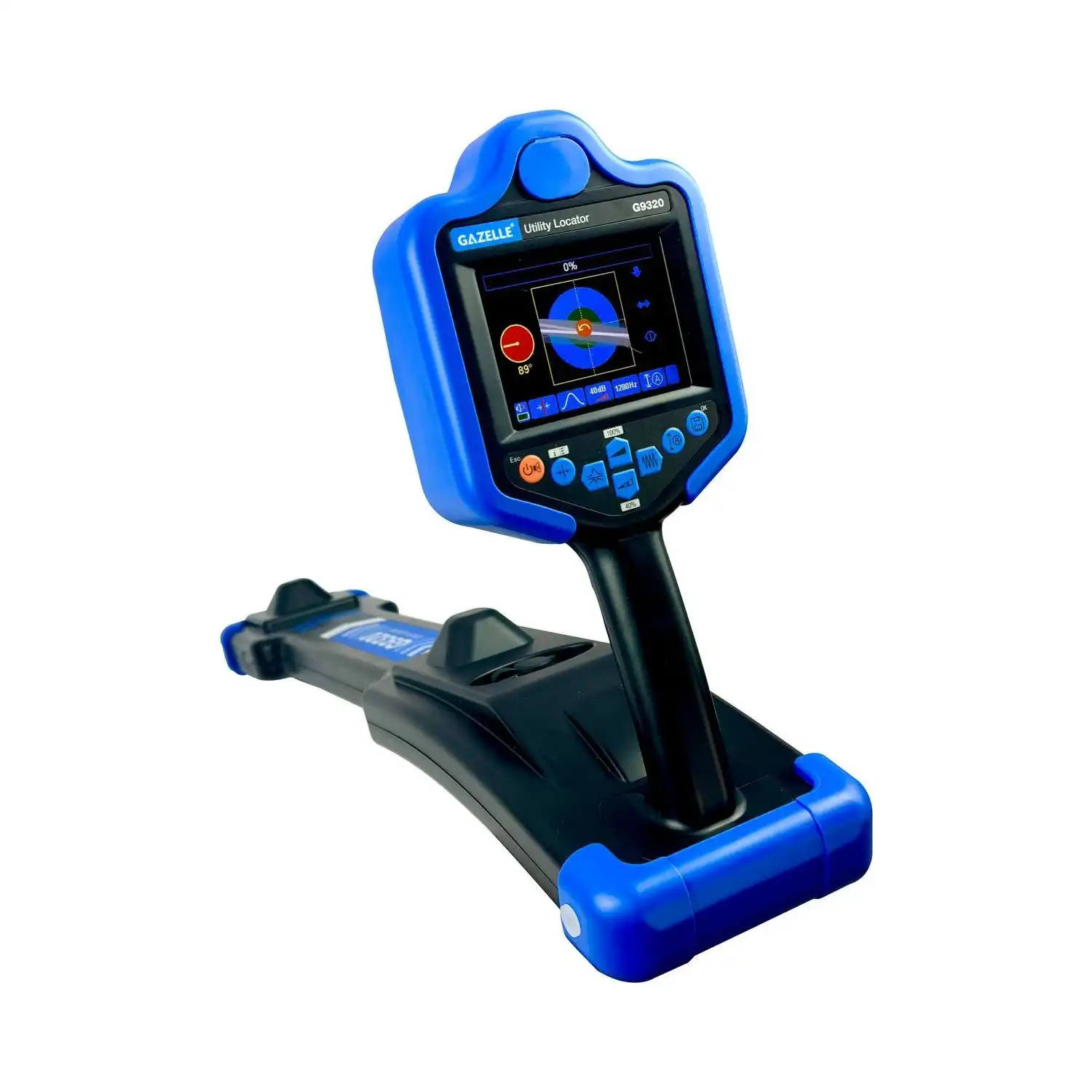

G9320 Underground Utility Locator (with Rechargeable Battery) - Image 2

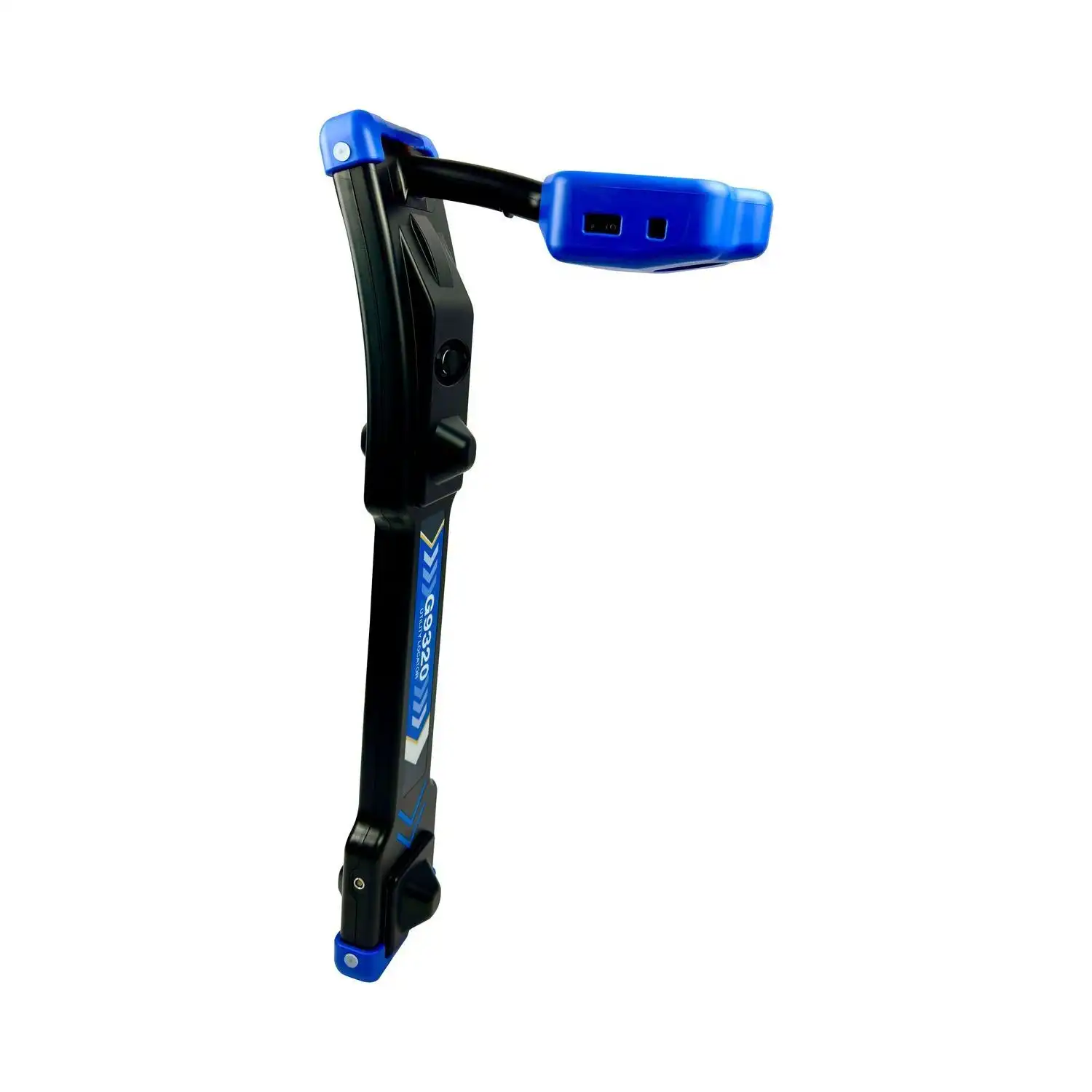

G9320 Underground Utility Locator (with Rechargeable Battery) - Image 3

G9320 Underground Utility Locator (with Rechargeable Battery)

Features

  • Receiver Modes: Direct connection, clamp coupling, radiation, booster mode
  • Detection Modes: Wide peak, narrow peak, valley mode, historical curve, frequency spectrum
  • Active Frequencies: 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz
  • Charger Input: AC 100-240V, 50/60Hz
  • Charger Output: DC 8.4V, 2A
  • Warranty: 1 year manufacturer’s warranty

Scope of Delivery

  • G9320 Utility Locator
  • G9333 Receiver Charger
  • G9335 Depth Measurement Auxiliary Sensory
  • Soft Carry Case
ENQUIRE NOW
Categories:

Description

Features

  • Multi-Mode Operation: Offers direct connection, clamp coupling, radiation, and booster modes for versatile utility detection.
  • Advanced Detection Modes: Includes wide peak, narrow peak, valley mode, historical curve, and frequency spectrum for precise and detailed analysis.
  • Comprehensive Frequency Support: Active frequencies range from 640Hz to 197kHz, with passive support for power frequencies, harmonics, and radio frequency bands.
  • High-Visibility Display: Equipped with a 320×240 dot matrix color LCD, ensuring clear readability even in bright sunlight.
  • Durable Battery Backup: Features a built-in lithium-ion battery (7.4V, >3Ah) for extended operational hours, with a fast-charging capability.
  • Robust Build for Extreme Conditions: IP65-rated protection ensures reliability in harsh environments, with operational temperatures from -25°C to 60°C and altitudes up to 4500 meters.
  • Compact and Lightweight: Weighs only 2.0kg with dimensions of 680×120×277mm, making it portable and easy to handle.
  • Deep Detection Capability: Measures depths up to 25 meters in active mode, providing accurate underground utility mapping.
  • 1 Year manufacturer’s warranty

Applications

  • Utility Services: Ideal for locating underground cables, pipes, and other utilities during maintenance and repair operations.
  • Construction: Used for pre-construction surveys to identify and avoid underground utilities, ensuring safe excavation.
  • Telecommunications: Facilitates the detection of buried telecom cables for installation and maintenance tasks.
  • Energy Sector: Supports the identification of underground power lines and pipelines in renewable and conventional energy projects.
  • Municipal Infrastructure: Essential for mapping and maintaining water, gas, and sewage pipelines in urban and industrial areas.
  • Industrial Facilities: Assists in locating buried utilities within large industrial complexes for maintenance and expansion projects.

TECHNICAL SPECIFICATIONS

Receiver Modes Direct connection, clamp coupling, radiation, booster mode
Detection Modes Wide peak, narrow peak, valley mode, historical curve, frequency spectrum
Active Frequencies 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz
Passive Frequencies Power frequency and harmonics, radio frequency
Display Interface 320×240 dot matrix color LCD
Battery Type and Capacity Lithium-ion, 7.4V nominal, >3Ah
Charger Input AC 100-240V, 50/60Hz
Charger Output DC 8.4V, 2A
Dimensions 680×120×277 mm
Weight 2.0 kg
Protection Rating IP65
Max depth measurement 25 meters (Active Mode)
Operating Conditions Temperature -25°C to 60°C; humidity <90%; altitude <4500m
