G9325 Cable Fault Locator A-Frame with 1KV Booster

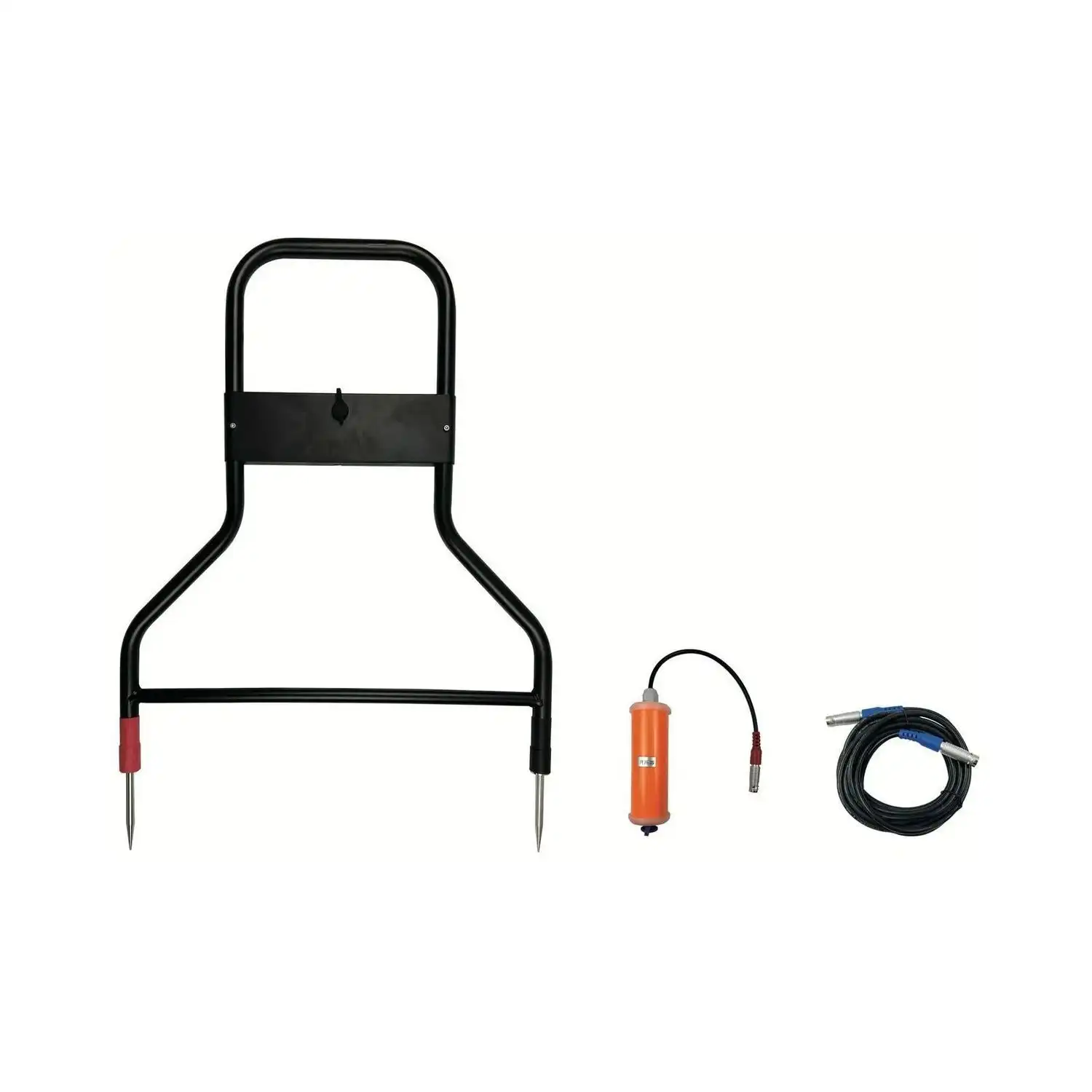

G9325 Cable Fault Locator A-Frame with 1KV Booster - Image 2

G9325 Cable Fault Locator A-Frame with 1KV Booster

Features

  • Maximum Output Voltage:1000 V DC (1 kV)
  • Signal Type:Impulse DC square waveform
  • Detection Method:Step voltage method for pinpointing grounded faults
  • Stable Voltage & Phase Tracking:Ensures accurate fault approach indication
ENQUIRE NOW
Categories:

Description

Features

  • Maximum Output: 1000V (1KV) for effective fault pinpointing
  • Step Voltage Function: Pinpoints grounded faults in pipelines
  • Applicable Fault Types: Insulation damage, non-armored low voltage cable faults, high voltage cable sheath faults
  • Transmitter Connection: Connects directly to fault pipeline via 5-core red plug and grounding rod
  • A-Frame Functionality: Provides precise fault location using probes drilled into the ground to detect leakage current
  • Automatic Accessory Detection: Transmitter and receiver auto-identify connected accessories and adjust mode
  • User-Friendly Design: Clear interfaces and straightforward operation for field use
  • Cable and Pipeline Compatibility: Detects faults in insulated pipes, non-armored low voltage cables, and high voltage cable sheaths
  • Directional Guidance: A-Frame provides arrows guiding operator toward fault point
  • Fault Proximity Indication: Voltage and phase stability indicate distance to fault
  • Signal Type: Impulse DC square waveform for clear and stable fault detection
  • 1 Year manufacturer’s warranty

TECHNICAL SPECIFICATIONS

Maximum Output Voltage: 1000 V DC (1 kV)
Signal Type: Impulse DC square waveform
Detection Method: Step voltage method for pinpointing grounded faults
Stable Voltage & Phase Tracking: Ensures accurate fault approach indication
