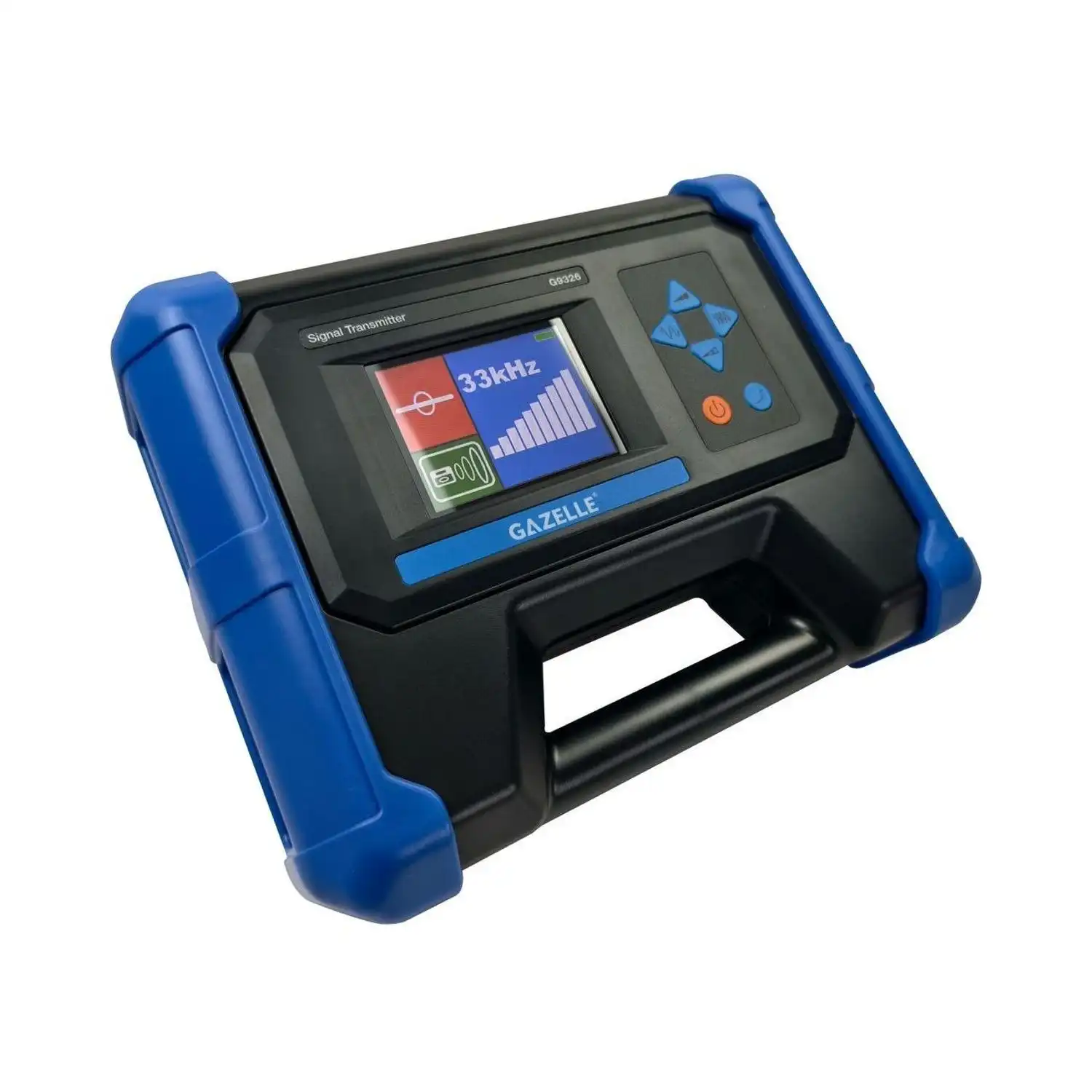

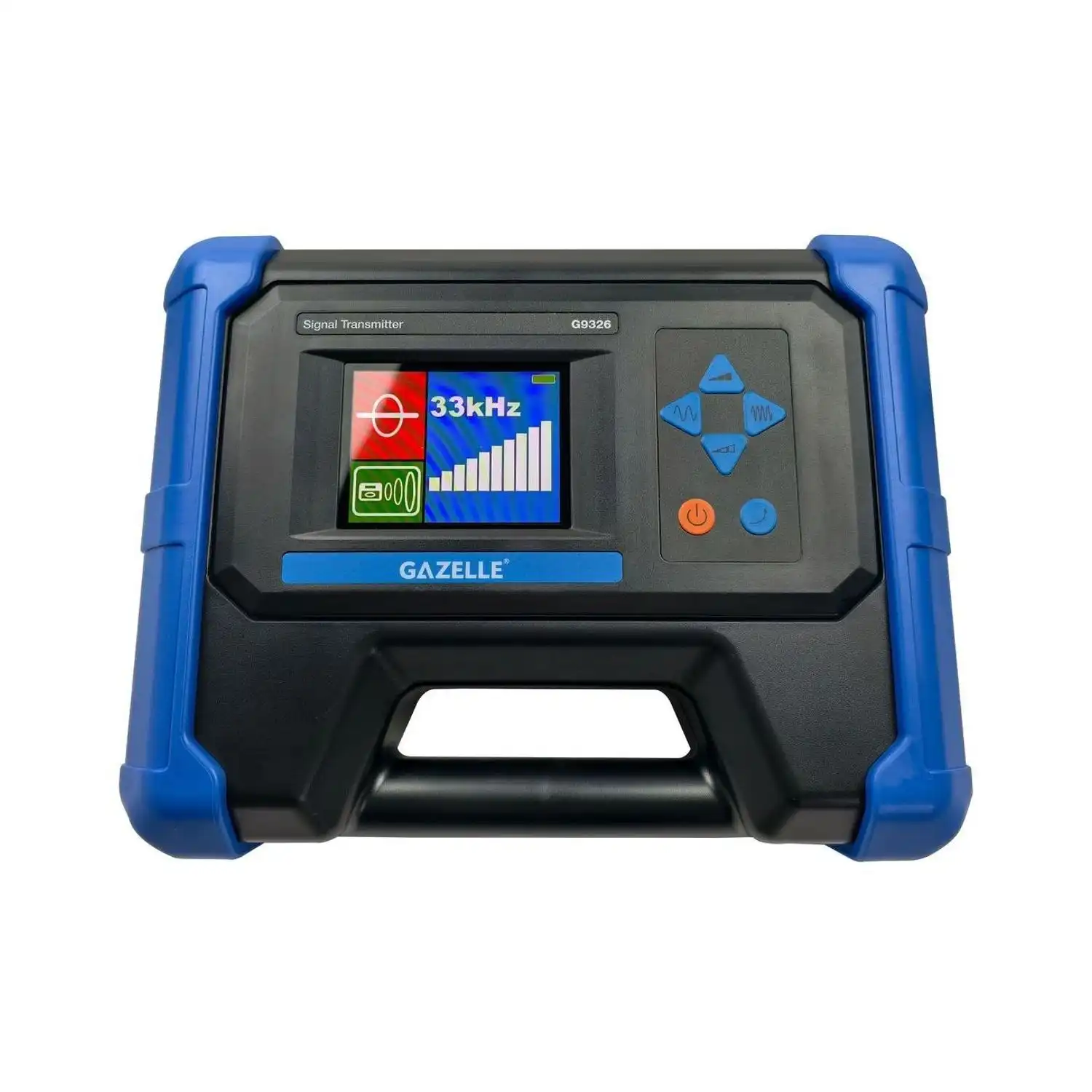

G9326 Line Transmitter (with Rechargeable Battery)
G9326 Line Transmitter (with Rechargeable Battery) - Image 2
G9326 Line Transmitter (with Rechargeable Battery) - Image 3

G9326 Line Transmitter (with Rechargeable Battery)

Features

  • Output Modes: Direct connection, clamp coupling, radiation, booster mode
  • Output Frequency Range: 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz
  • Output Power Capacity: 15W (maximum), 10 adjustable levels
  • Charger Input: AC 100-240V, 50/60Hz
  • Charger Output: DC 8.4V, 2A
  • Warranty: 1 year manufacturer’s warranty

Scope of Delivery

  • Transmitter
  • G9333 Charger
  • G9332 Direct Connection Cable
  • G9334 Ground Rod x2
ENQUIRE NOW
Categories:

Description

Features

  • Versatile Output Modes: Supports direct connection, clamp coupling, radiation, and booster modes for a wide range of applications.
  • Adjustable Power Output: Delivers up to 15W of power with 10 adjustable levels, allowing for precise control based on operational needs.
  • Wide Frequency Range: Configurable output frequencies from 640Hz to 197kHz, ensuring compatibility with various detection systems.
  • Automatic Protection: Features fully automatic overvoltage and overcurrent protection, along with automatic impedance matching for safe and efficient operation.
  • Enhanced Digital Display: Equipped with a 320×240 dot matrix color LCD for clear visibility in all lighting conditions.
  • Long-Lasting Battery: Integrated lithium-ion battery (7.4V, >6Ah) provides extended runtime, ensuring uninterrupted field operations.
  • Compact and Rugged Design: Weighs only 2.3kg with dimensions of 280×220×90mm, and is IP65-rated for durability in harsh environments.
  • Field-Ready Performance: Operates reliably in temperatures from -25°C to 60°C, withstanding humidity levels below 90% and altitudes up to 4500 meters.

Applications

  • Utility Services: Ideal for transmitting signals to locate underground cables and pipelines during maintenance and repair operations.
  • Telecommunications: Facilitates signal transmission for detecting and maintaining buried telecom cables.
  • Energy Sector: Supports the identification and maintenance of underground power lines in renewable and conventional energy projects.
  • Municipal Infrastructure: Essential for mapping and maintaining water, gas, and sewage pipelines in urban and industrial areas.
  • Industrial Facilities: Assists in troubleshooting and maintaining underground utility networks within large industrial complexes.
  • Construction: Used for pre-construction surveys to transmit signals for identifying underground utilities, ensuring safe excavation.

TECHNICAL SPECIFICATIONS

Output Modes Direct connection, clamp coupling, radiation, booster mode
Output Frequency Range 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz
Output Power Capacity 15W (maximum), 10 adjustable levels
Impedance Matching Fully automatic
Overvoltage/Overcurrent Protection Fully automatic
Display Interface 320×240 dot matrix color LCD
Battery Type and Capacity Lithium-ion, 7.4V nominal, >6Ah
Charger Input AC 100-240V, 50/60Hz
Charger Output DC 8.4V, 2A
Dimensions 280×220×90 mm
Weight 2.3 kg
IP Rating IP65
Operating Conditions Temperature -25°C to 60°C; Humidity <90%; Altitude <4500m
